Debug ProjectPlanton Pulumi Modules

ProjectPlanton is an open-source framework designed to simplify multi-cloud deployments by providing a consistent developer experience across different cloud providers. One of the key advantages of using Pulumi within ProjectPlanton is the ability to debug infrastructure as code (IaC) programs using standard debugging tools. This powerful capability enhances productivity and accelerates troubleshooting.

Pulumi recently introduced the ability to debug programs using breakpoints when running them via the Pulumi CLI. This feature allows developers to step through their code, inspect variables, and understand the execution flow in real-time.

Announcement Blog Post: Next-level IaC: Breakpoint Debugging for Pulumi Programs

In this guide, we’ll provide a detailed walkthrough on how to debug ProjectPlanton Pulumi modules written in Go using GoLand. We’ll cover enabling debugging in your existing modules, configuring your environment, setting up necessary environment variables, and running your Pulumi program in debug mode.

Prerequisites

Before you begin, ensure you have the following installed and configured:

GoLand IDE: Installed and configured for Go development.
Go Programming Language: Compatible version with your Pulumi modules.
Pulumi CLI: Installed and authenticated with your Pulumi backend.
Delve Debugger (dlv): Installed and accessible in your system’s PATH.

Overview

Debugging Pulumi programs involves attaching a debugger to the process that runs your IaC code. Since Pulumi executes your program via the Pulumi CLI, we need to:

Enable the debugging configuration in your existing Pulumi modules.
create manifest yaml file for the deployment component.
Configure GoLand to attach to the running Delve debugger.
Run Pulumi with debugging enabled.

Watch Video

Watch this video or follow the step-by-step guide in the next section

Step-by-Step Guide

By following these steps, you can set breakpoints, inspect variables, and step through your code just like you would with any other Go application.

1. Prepare Your Pulumi Module for Debugging

The Pulumi modules maintained by ProjectPlanton already include:

A debug.sh script in the root directory.
A Pulumi.yaml file with the binary option configured but commented out.

This setup is designed to make it easy for developers to enable debugging when needed.

Examine the `debug.sh` Script

The debug.sh script typically contains:

#!/bin/bash
go build -o goapp -gcflags "all=-N -l" .
exec dlv --listen=:2345 --headless=true --api-version=2 exec ./goapp

Explanation:
- go build -o goapp -gcflags "all=-N -l" . compiles your Go program into an executable named goapp with optimizations and inlining disabled (-N -l), which is crucial for debugging.
- exec dlv --listen=:2345 --headless=true --api-version=2 exec ./goapp runs the goapp binary under Delve in headless mode, listening on port 2345.

Check `Pulumi.yaml` Configuration

Your Pulumi.yaml file should look like this:

name: aws-module-test-pulumi-project
runtime:
  name: go
#  options:
#    binary: ./debug.sh

Note:
- The binary option is commented out by default to facilitate normal execution.
- When you need to debug, you can simply uncomment the binary option.

2. Enable Debugging in `Pulumi.yaml`

To enable debugging:

Uncomment the binary option in your Pulumi.yaml file:
```
name: aws-module-test-pulumi-project
runtime:
  name: go
  options:
    binary: ./debug.sh
```
- This tells Pulumi to execute the custom debug.sh script instead of the default Go runtime.
Ensure the debug.sh Script is Executable
```
chmod +x debug.sh
```
- This step may have already been done, but it’s good to verify.

3. Set up deployment-component manifest file

All project-planton pulumi operations would require --manifest flag, which contains the path to the deployment-component manifest file. This file defines the configuration for the deployment component, following the protobuf definitions specified by ProjectPlanton.

Before running project-planton pulumi up, you need to set up this file.

Example `manifest.yaml` File

Create a manifest.yaml file with your deployment configuration. Here’s an example:

apiVersion: aws.project.planton/v1
kind: AwsDynamodb
metadata:
    name: example-dynamodb-test
spec:
    table:
    billingMode: PROVISIONED
    hashKey:
        name: id
        type: S

Explanation:
- The manifest.yaml contains the API resource definition.
- It specifies the apiVersion, kind, metadata, and spec for the deployment component.
- This configuration follows the protobuf definitions for the deployment component.
- Adjust the values according to your specific deployment requirements.

4. Configure Remote Debugging in GoLand

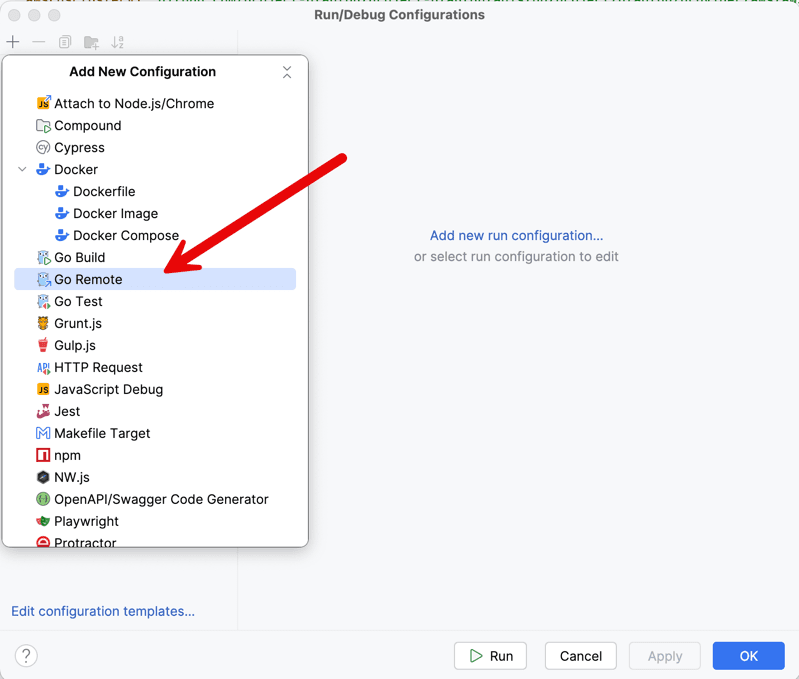

4.1 Create a New Run/Debug Configuration

Go to Run > Edit Configurations… in the menu bar.
Click the + icon to add a new configuration.
Select Go Remote from the list.

GoLand New Run/Debug Configuration

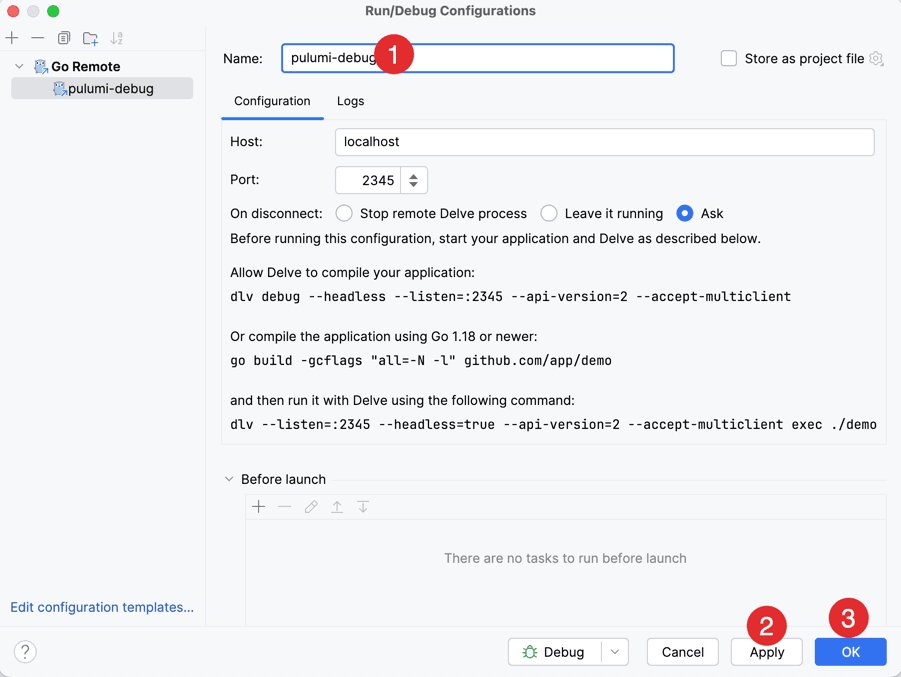

4.2 Set Up the Configuration

Name: Pulumi Remote Debug
Host: 127.0.0.1
Port: 2345 (must match the port specified in your debug.sh script)
Mode: Attach to running remote Delve debugger
API Version: Ensure it’s set to 2 to match the --api-version=2 in your script.

Configuration should look like this:

GoLand Remote Debug Configuration

4.3 Apply and Save

Click Apply and then OK to save the configuration.

5. Run Pulumi

Run your Pulumi program with the desired stack:

project-planton pulumi up --stack <stack-fqdn> --manifest <manifest-yaml-path>

Important:
- Replace <stack-fqdn> with your fully qualified stack name (e.g., yourOrg/yourProject/yourStack).
- The Pulumi execution will start and wait until a debugger is attached before proceeding.
- Pulumi will block execution and display a message indicating it’s waiting for a debugger to attach.

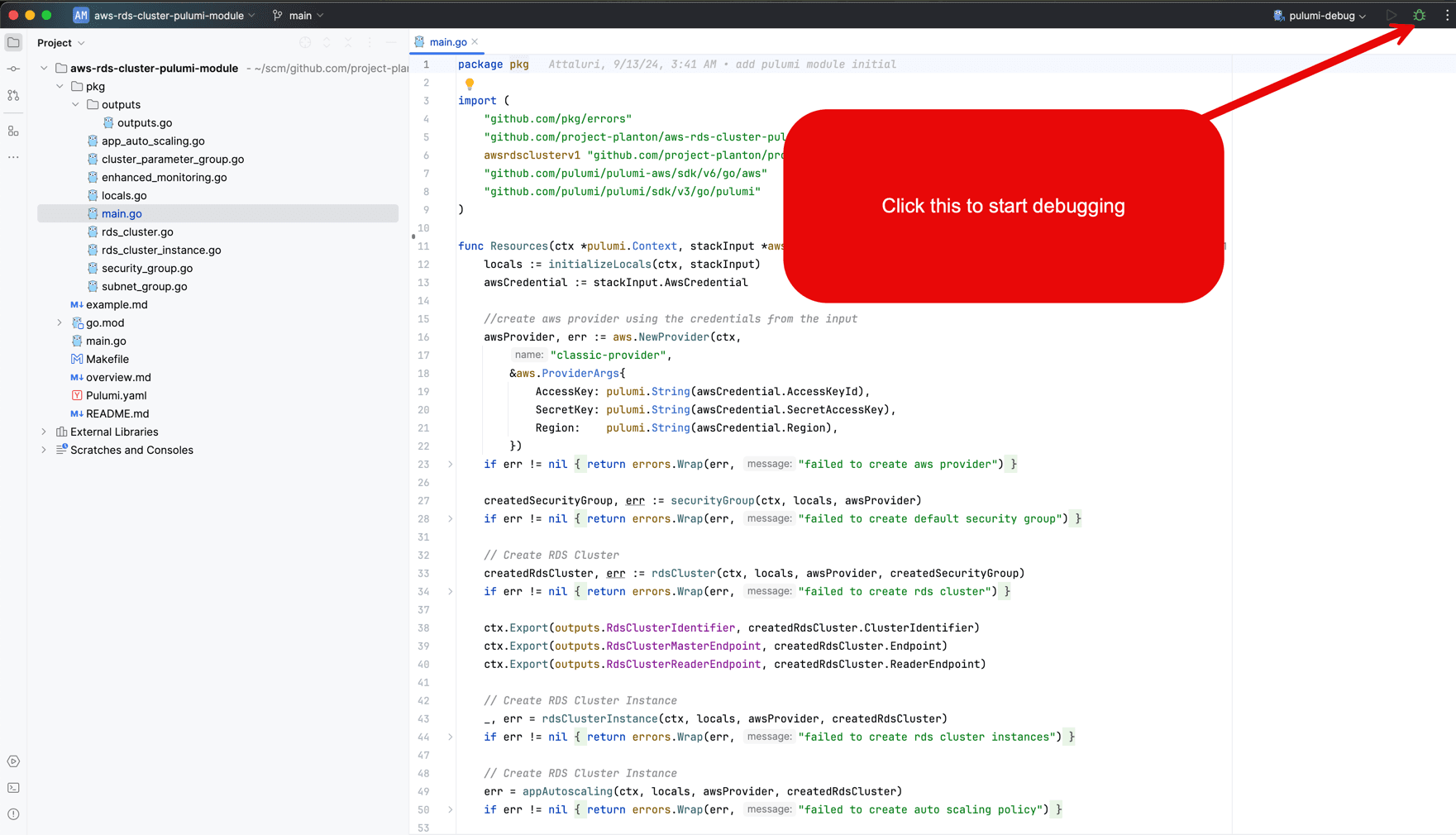

6. Attach the Debugger

In the top-right corner of GoLand, select your new Pulumi Remote Debug configuration.
Click the Debug button (green bug icon) to start the debugging session.
GoLand will connect to the Delve debugger running your Pulumi program.

GoLand Attach Debugger

Observation:

Pulumi execution is blocked until the remote debugger is connected.
Once you start the debugger in GoLand, the Pulumi program will proceed with execution.

7. Debug Your Program

Once connected:

Execution will pause at your breakpoints.
Use GoLand’s debugging tools to:
- Step Over (F8): Execute the next line of code without entering any functions.
- Step Into (F7): Dive into functions to debug them line by line.
- Step Out (Shift+F8): Exit the current function and return to the caller.
- Resume Program (F9): Continue execution until the next breakpoint or program termination.
Inspect variables, evaluate expressions, and monitor the call stack.
Use the Variables pane to view local and global variables.
Use the Watches pane to monitor specific expressions or variables.

8. Continue Execution

After you’ve finished debugging, resume the program’s execution by clicking Resume Program or pressing F9.
Let the Pulumi CLI complete its execution and update your infrastructure accordingly.
Check the Pulumi CLI output to verify the deployment results.

9. Disable Debugging for Normal Execution

When you want to run your program without debugging:

Comment Out the binary Option in Pulumi.yaml:

name: aws-module-test-pulumi-project
runtime:
  name: go
#  options:
#    binary: ./debug.sh

Run Pulumi Normally:

project-planton pulumi up --stack <stack-fqdn> --manifest <manifest-yaml-path>

This will execute your Pulumi program without invoking the debug.sh script.

10. Iterating and Debugging Again

If you need to debug again, simply uncomment the binary option in Pulumi.yaml and repeat the steps.
This approach makes it easy for developers to switch between normal execution and debugging mode.

Additional Notes

Using `project-planton pulumi preview` and `project-planton pulumi up`

Pulumi runs your program twice during project-planton pulumi up: once for the preview and once for the actual update.
Both runs will trigger the debugger and wait for you to attach.
To debug only one of these runs:
- Debug only the preview: project-planton pulumi preview
- Debug only the update without preview: project-planton pulumi up --skip-preview

Ensuring Delve Is Installed

If Delve (dlv) is not installed, install it with:

go install github.com/go-delve/delve/cmd/dlv@latest

Ensure that $GOPATH/bin or $HOME/go/bin is in your system’s PATH.
Verify the installation with:
```
dlv version
```

Understanding Build Flags

The -gcflags "all=-N -l" flags in the go build command disable optimizations and inlining.
This ensures the debugger can accurately step through your code line by line.
Without these flags, the compiler might optimize away certain variables or rearrange code, making debugging difficult.

Highlighting Pulumi’s Powerful Capabilities

By leveraging Pulumi’s debugging capabilities, ProjectPlanton provides:

Enhanced Developer Experience: Debugging infrastructure code as you would any application code.
Faster Troubleshooting: Quickly identify and resolve issues in your deployment logic.
Consistent Multi-Cloud Deployments: Debug across different cloud providers using the same tools.

This aligns with ProjectPlanton’s goal of simplifying multi-cloud deployments and delivering a consistent developer experience. Pulumi’s powerful features, such as breakpoint debugging, are a significant factor in choosing it as the IaC tool for ProjectPlanton.

Conclusion

Debugging Pulumi modules in ProjectPlanton allows you to harness the full power of Go’s debugging tools to inspect and understand your infrastructure code. Since the modules already include the debug.sh script and the Pulumi.yaml file with the binary option commented out, enabling debugging is straightforward.

By integrating standard debugging practices into your IaC workflows, you can:

Improve Code Quality: Catch errors early in the development process.
Enhance Productivity: Reduce time spent diagnosing issues.
Achieve Greater Insight: Understand the behavior of your deployments at a granular level.

We hope this guide helps you effectively debug your Pulumi modules within ProjectPlanton. Happy debugging!

References

GoLand Documentation: Debugging Code
Delve Debugger: Delve GitHub Repository
